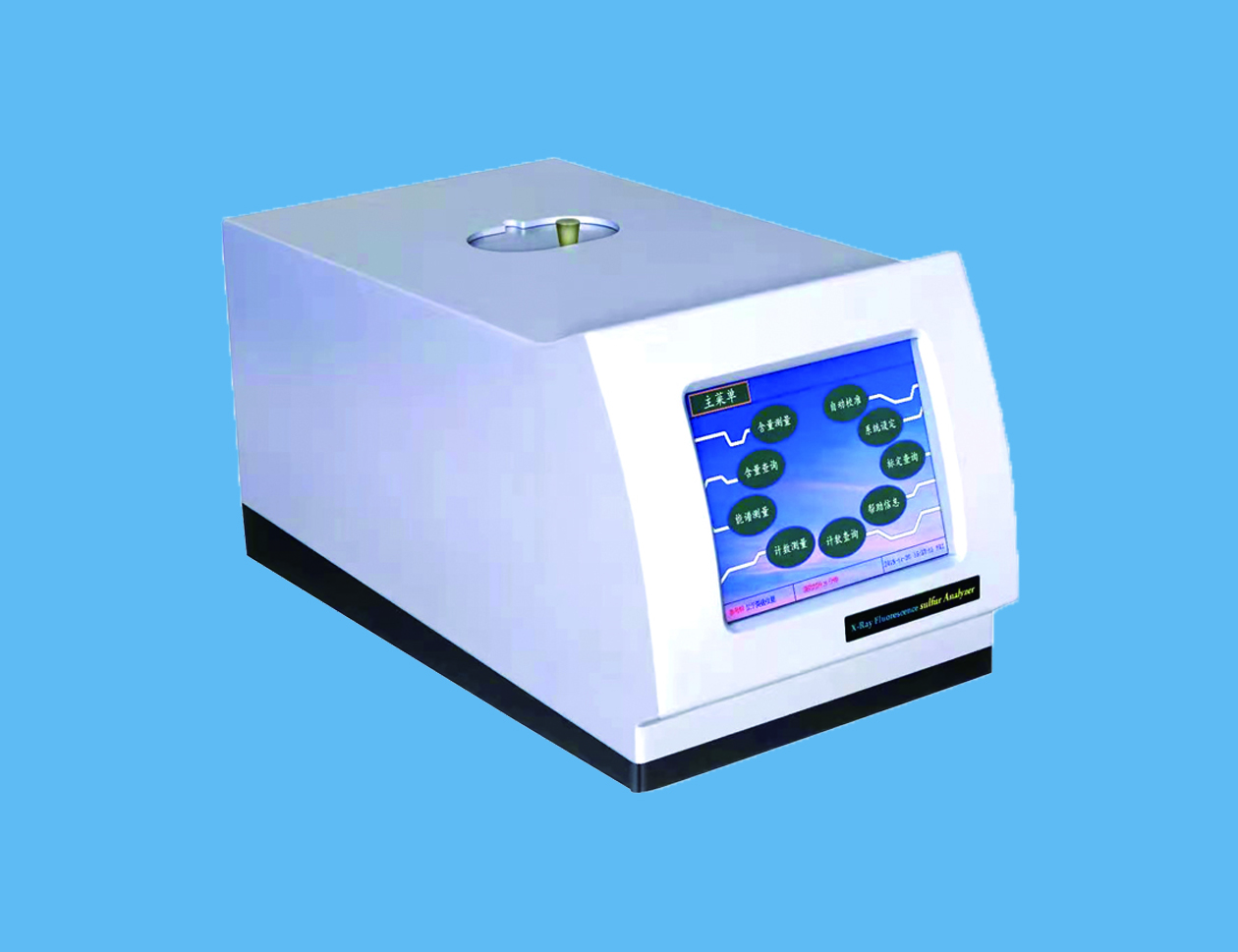

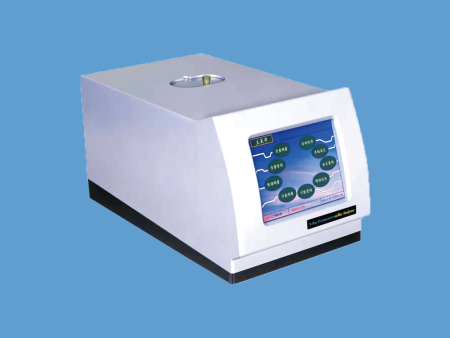

TLXS-200 X-ray fluorescence sulfur analyzer

Product Usage:

1. Measure the total sulfur mass percentage content in crude oil, petroleum, heavy oil, diesel, kerosene, gasoline, and other oil products:

2. Measure the total sulfur content in coal chemical products such as primary benzene:

3. Measure the total sulfur or sulfide content in solid fine powder samples, such as anode carbon blocks, petroleum coke, modified asphalt, and other carbon materials:

4. Measurement of total sulfur or sulfide content in lubricating oil and petroleum additives;

5. Measurement of total sulfur or sulfide content in other liquids.

Applicable standards: GB/T 17040, GB11140, ASTM D4294 standard requirements

Functional features:

Wide range of detection varieties and wide detection range Fast analysis speed and low consumption of standard samples:

General Manager

Using fluorescence intensity ratio analysis method, temperature and pressure are automatically corrected, and the carbon to hydrogen ratio (C/H0) can also be corrected:

The automatic diagnostic function of the instrument determines the working status and electrical parameters of the instrument;

The instrument has an automatic peak stabilization function. When the detector performance decreases, the system can automatically adjust the high voltage to correct errors:

The instrument automatically selects the working curve by default upon startup, without user intervention:

Users can choose the measurement unit, pm or (i/m)%;

Technical parameters:

1. Sulfur measurement range: 0 0017-~5%;

2. Repeatability (r):<0 4347 x0 6446 (X=average of two repeated test results);

Reproducibility (R):<1 9182 x0 6446 (X=average of two single independent test results):

3. Sample size: Oil: 3m1~-5ml; Powder sample: 3 grams;

4. Measurement time: 30, 60, 90, 120, 150 seconds can be set arbitrarily;

5. Single sample automatic measurement frequency: 1, 2, 3, 5, 10 times can be set arbitrarily, and the average value and standard deviation will be given at the end of the measurement:

6. The instrument can store 10 calibration curves,

7. Working conditions: Temperature: 10~-30 ° C: Relative humidity: ≤ 85% (30 ° C);

Power supply: AC220V+20V, 50Hz; Rated power: 50W;

8. Dimensions and weight: length 460m x width 260m x height 260m; one
