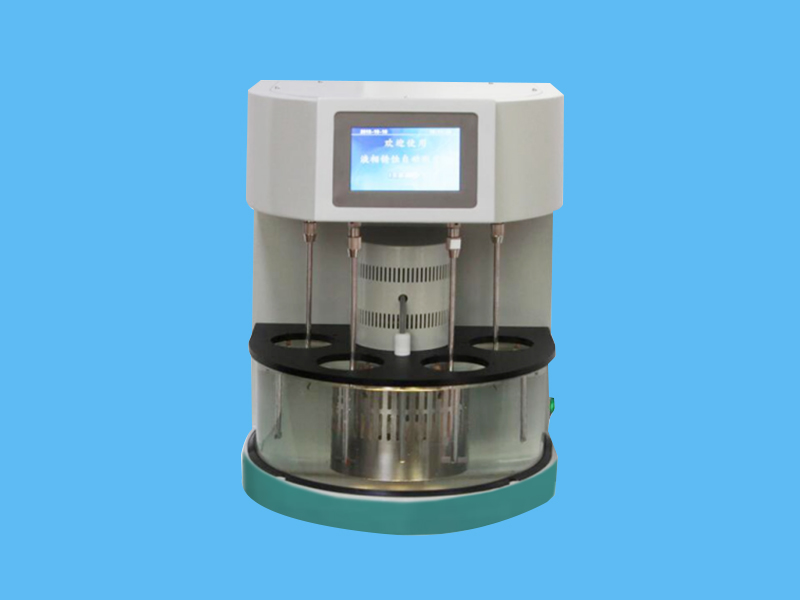

Liquid phase corrosion tester

Instrument Name：Liquid phase corrosion tester

model：XS-10

Manufacturer:Tianlong instrument

Executive standards: GB/T11143, ASTM D665

Instrument characteristics

1. Adopting a 5-inch high-definition color touch screen, the interface is clear and easy to operate.

2. The instrument can simultaneously measure four samples, and the four experiments can be conducted independently without interfering with each other.

2. Adopting PID temperature control technology, the temperature control accuracy is high.

3. Adopting imported PT100 temperature sensor, with high temperature measurement accuracy.

4. The mixing time can be set as needed, and the mixing time for the four test holes can be set separately.

5. The instrument can automatically control temperature and stir, and has an automatic prompt operation function, with a high degree of automation.

6. It is possible to set temperature control values, fine tune temperature values, stirring time and other parameters. After setting, the instrument can be saved.

7. The instrument is small in size, lightweight, and beautiful and exquisite.

technical parameter

Temperature control range: room temperature -100 ℃, adjustable at will

Temperature control accuracy: ± 0.1 ℃

Resolution: 0.02 ℃

Mixing time: 0-99 hours, adjustable at will

Mixing speed: 1000 ± 20 revolutions per minute

Experimental holes: 4

Operating environment: ≤ 45 ℃

≤ 85% RH

Power supply voltage: 220V ± 10% 50HZ

External dimensions: 320 * 350 * 500mm

Basic configuration

1 host

4 sample covers

4 mixing paddles

4 rust rods

Sandpaper 2 sheets

1 power cord
