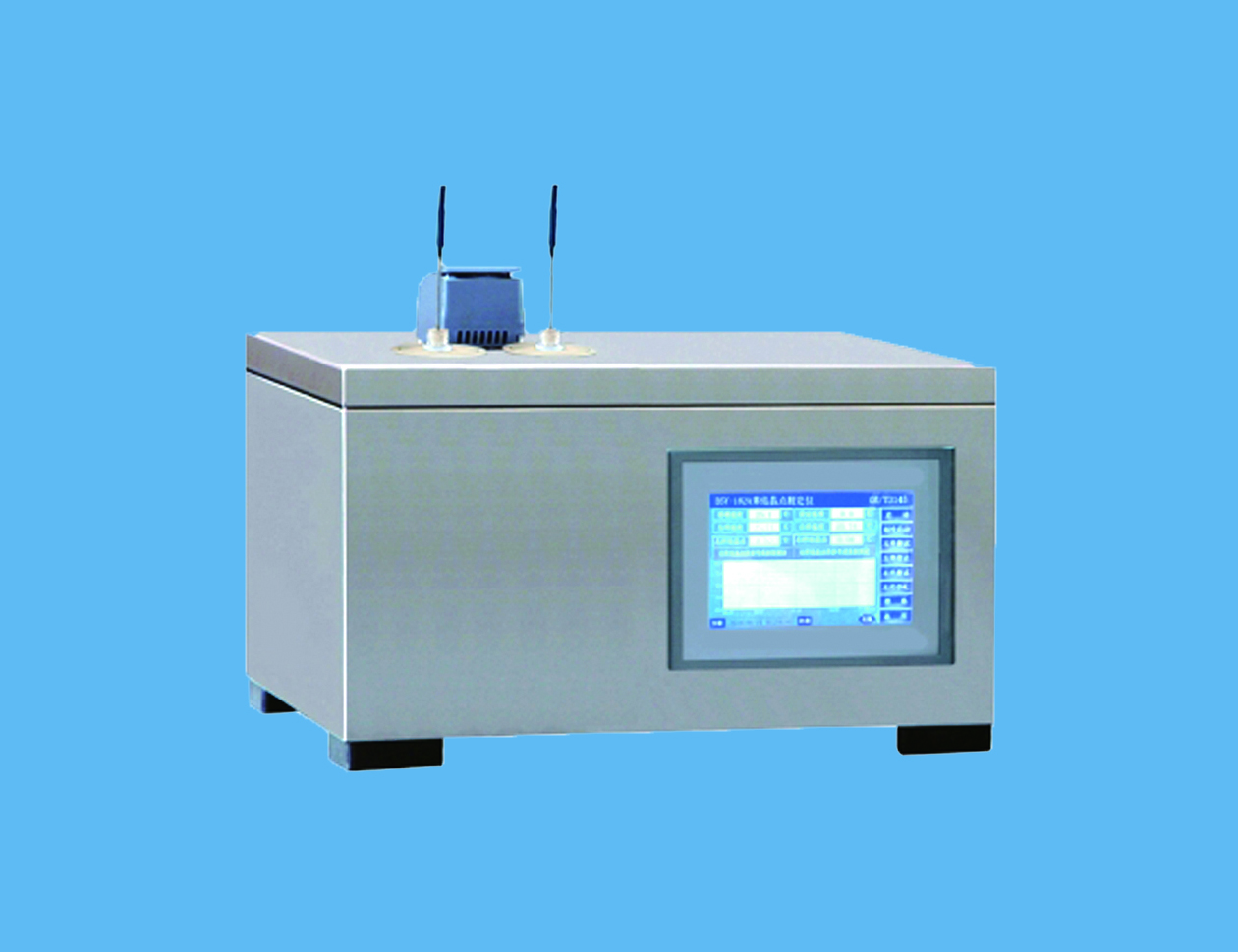

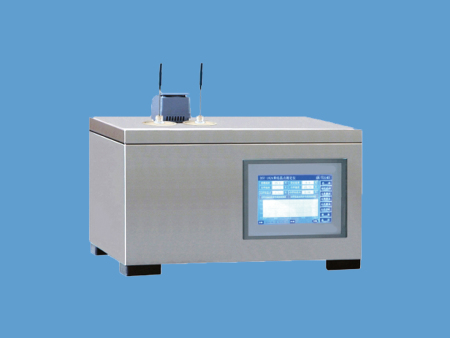

TLJD-20 Automatic Benzene Crystallization Point Tester

Manager Liu：	13351885528
Manager Liu：	13945136889
	Online More Information
Share：

Previous： TLLV-20 Automatic Cold Filter Point Tester

Next： TLCT-10 fully automatic trace residual carbon analyzer

Keywords： Harbin Tianlong Instrument Manuf

Product Introduction

Product Usage: Suitable for detecting crystallization points

Applicable standard: GB/T3145

Functional features:

Control system: Adopting industrial grade PLC programmable logic controller, treated with three proof paint, ensuring worry free instrument safety. A 7-inch tablet touchscreen display allows you to complete experiments based on screen prompts without the need for training.

Automatic benzene crystallization point analyzer operating system: W windowsCE embedded operating system, full Chinese operation interface, page switching at will, simple and convenient operation, automatic printing of results, super large capacity storage function, can store tens of thousands of data and curves.

Automatic benzene crystallization point analyzer data input/output: RS485 connection standard, can be connected to USB2 0 interface. Compatible with LIMS system, supports online monitoring and downloading, making it more convenient to use.

Technical indicators

1. Power supply: AC220V 50Hz

2. Power supply: 1200W

3. Automatic benzene crystallization point tester ambient temperature: 10-30'C.

4. Temperature range: -20C~-50'C

5. Bath accuracy: ± 0 1'C

6. Sensor: Pt100 thermistor (imported from JUMO, Germany)

7. Testing accuracy:+0 01'C

8. Automatic Benzene Crystallization Point Tester This instrument is designed with two wells and can simultaneously measure two samples

9. Refrigeration method: compressor refrigeration

10. Using electromagnetic stirring, stir 60 times per minute

11. External dimensions: 550X 450 x 420mm
