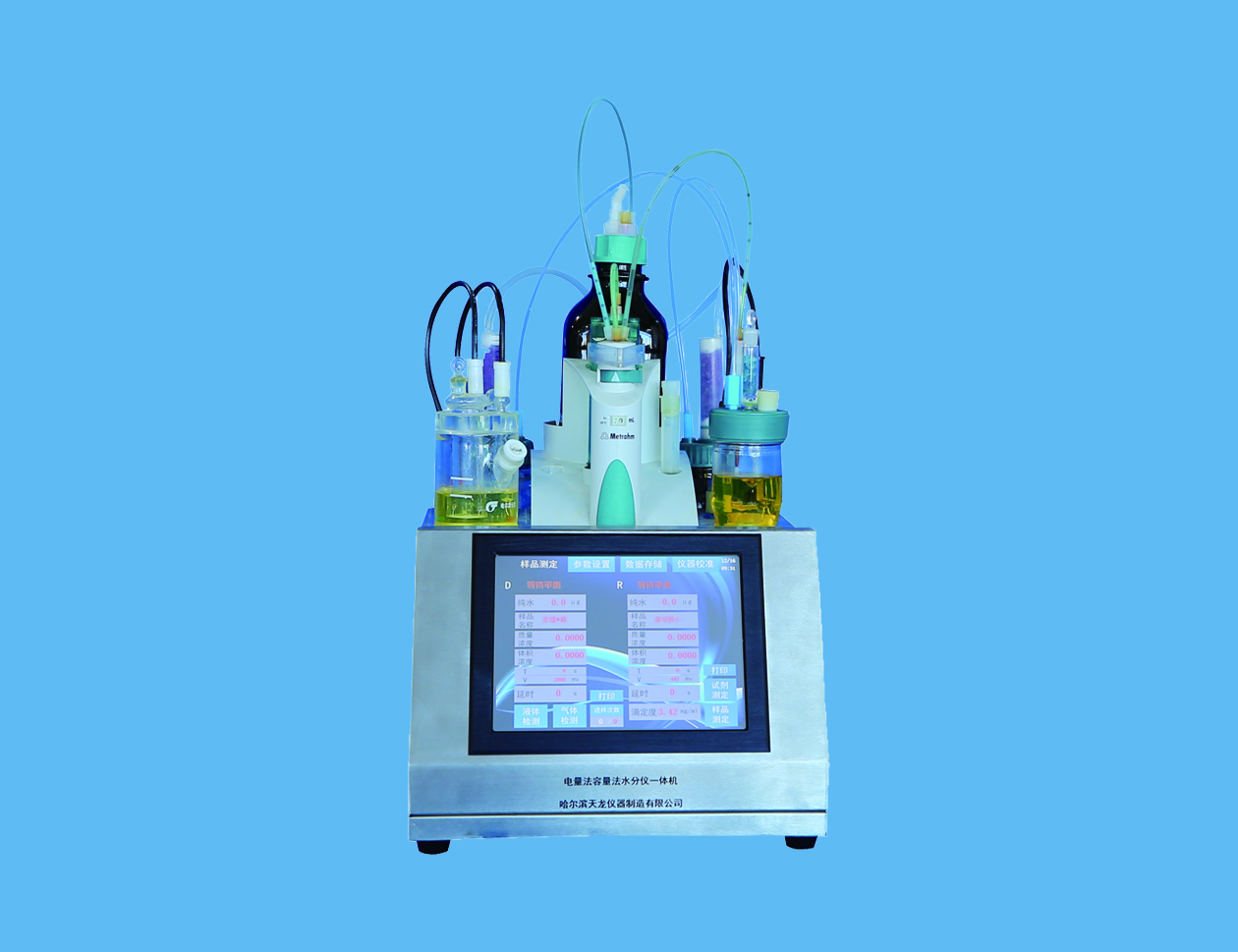

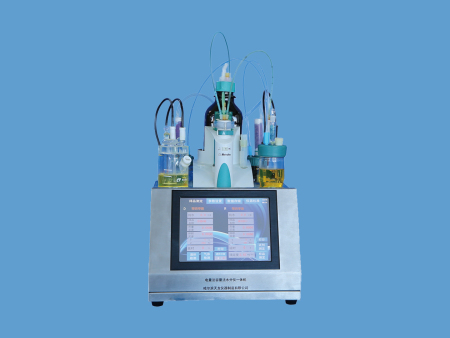

Electric quantity method, capacity method, moisture meter integrated machine

Product Usage: Widely used in petrochemical products, food, daily necessities, pharmaceuticals, pesticides, cosmetics, solvents, and other gases and liquids

Body and solid products.

Applicable standards: GB/T623, SH1144, SH/T0086, SH/T1612, GB/T606, SH/T 0246, GB/T3727, GB/T7600.

Performance characteristics:

A full range Karl Fischer apparatus for measuring water content is formed by integrating various methods. Satisfy the requirements for constant and trace moisture samples

Moisture determination requires simultaneous analysis of two sets of samples.

According to different sample measurement requirements, balance, accuracy, drip rate, and stirring can be freely set and controlled;

Titration unit: imported from Wantong, Switzerland

◆ Self check: The instrument has the function of self diagnosis and measurement, as well as electrolytic electrode faults

The use of imported motors, pumps, and valves greatly improves the reliability of the product

Add dynamic average deduction blank function.

Add automatic calibration function: This function solves the errors caused by differences in different reagents and decreased reagent sensitivity Poor.

Technical parameters for trace moisture:

Electrolytic control: Automatic electrolytic current control (less than 400mA)

Measurement range: 3+H20-~99mgH20

Electrolysis speed: 2 0 milligrams of water per minute

Sensitivity threshold: 0 1 microgram of water;

Accuracy: 3ug, 100ug, H20, with an error of 0.5% for soil above 1ug, 100ug, and H20.

Printing: Wide line micro printer

Resolution: 1 μ A

Constant moisture technical parameters:

Measurement range: 10ppm-100%

Reproducibility: Soil 0.01

Result display units:%, ppm, mg

Titration feed rate: 0 001ml

Titration rate: 0 5ml/second

Burette customer volume: 20ml

Burette resolution: 10000

Sensitivity threshold: 0 5ugH20

Drift: Fully automatic real-time measurement

Environmental conditions for instrument use: ambient temperature 15~30 "C, humidity ≤ 85%

Power supply voltage: AC220V, 50Hz

External dimensions: 335 X500X550mm (length x width x height)
