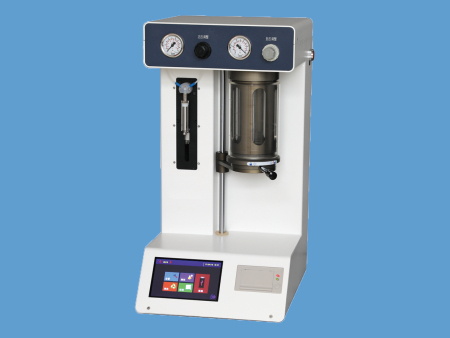

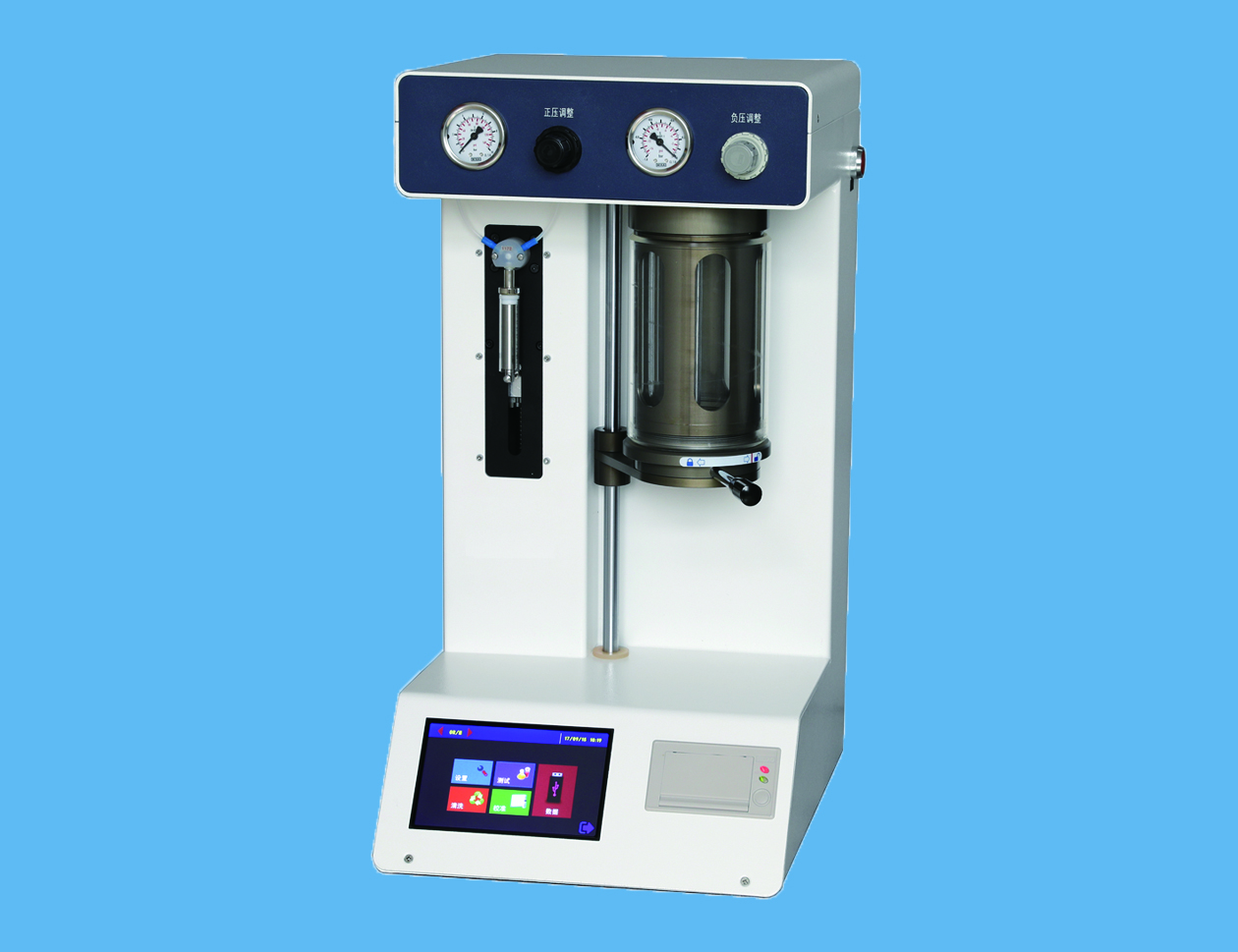

TLKL-20 Oil Particle Calculator

Product purpose: It can be widely used in aviation, aerospace, power, petroleum, chemical, transportation, ports, metallurgy, machinery, and automotive industries

Manufacturing and other fields.

Applicable standards: GB/18854 2002 (10111-19999 and other standards).

Functional features:

Using the counting principle of light obstruction (shading) method developed by the Hydraulic Standards Committee

Using high-pressure injection pump sampling method, the sampling volume can be set by oneself, the injection speed is stable, and the sampling accuracy is high

The injection system combining positive and negative pressure can achieve sample degassing, suitable for testing samples with different viscosities

built-in air purification system ensures that testing is not contaminated

<>Built in multiple: recalibration curves, compatible with all commonly used domestic and foreign standards for calibration

Accurate, supports custom standard testing, and can set the required standards according to customer needs

Built in data analysis system, this test can provide all standard test data and pollution levels

O can set particle size arbitrarily, with nearly 10000 built-in particle sizes for easy particle size analysis

Various sampling devices such as standard sampling bottles or cups can be used to meet the testing requirements of different industries

Can perform single channel and multi-channel calibration, achieving automatic calibration function.

Equipped with RS232 interface, it can be connected to a computer or laboratory platform for data processing.

Technical indicators

Light source: semiconductor laser

Particle size range: 0 8um~600um (depending on different sensors)

Detection channel: 16 channels, with arbitrary particle size settings

Resolution: better than 10%

Repeatability: RSD<2%

Viscosity range: 400eSt

Sampling volume: 0 2-~1000m|

Sampling accuracy: better than soil 0 5%

Sampling speed: 5-80m/ Min

Pressure chamber vacuum: 0 08MPa

Positive pressure of the pressure chamber: 0.8 MPa

Particle concentration: 20000 particles/mL

Power supply: 110-245V AC, 50Hz, 70W

External dimensions: 340X410X 650mm
