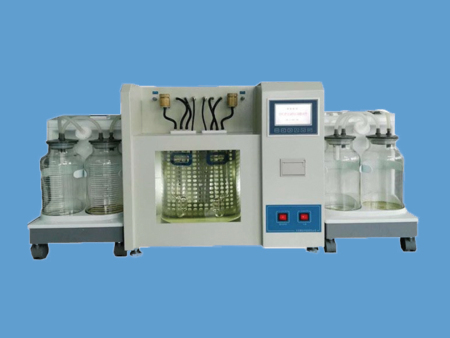

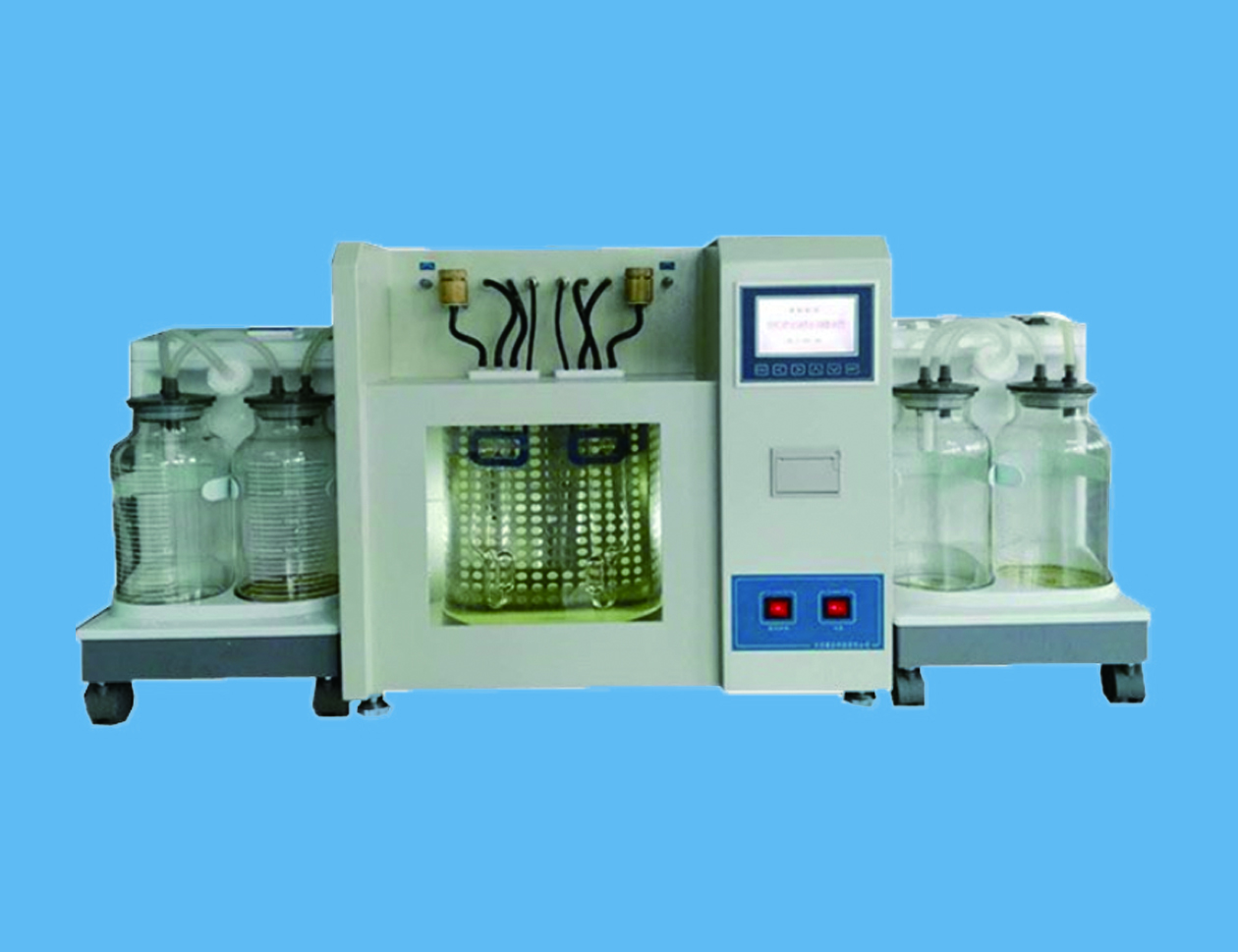

TLND-30 fully automatic kinematic viscosity tester

Product Usage: Widely used in the petrochemical industry to test the kinematic viscosity of oil products and chemical liquids.

Applicable standards: According to the Chinese standard CB/T 265 "Determination of kinematic viscosity of petroleum products and dynamic viscometer algorithm",

Suitable for measuring the kinematic viscosity of liquid petroleum products (referring to Newtonian liquids) and dark petroleum products; It can also measure lubricating oil and related factors

The viscosity index of a substance.

Functional features:

◆ Automatic judgment results, photoelectric detection circuit, fast and accurate detection.

Asynchronous measurement can be performed on both styles simultaneously.

Users can choose to equip refrigeration equipment to measure low-temperature viscosity.

Technical indicators:

1. Working power supply: AC 220V ± 10%, 50Hz

2. Temperature control range: 5~100'C;

Repeatability: ≤ 0 01S

Reproducibility: ≤ 0 02S

Resolution: 0 01C

Accuracy: 0.5%

3. Basic parameters: Heating rate: in accordance with GB265/standard;

Detection method: photoelectric detection.

4. Environmental temperature: 10-40'C Relative humidity: ≤ 8C

5. Power consumption of the whole machine: 1600W
