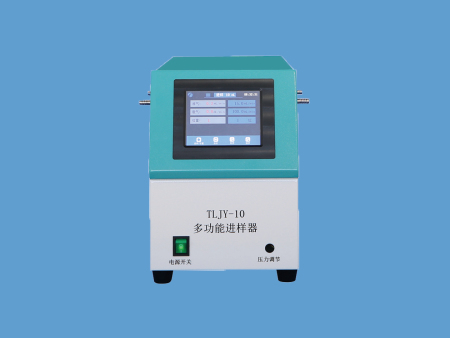

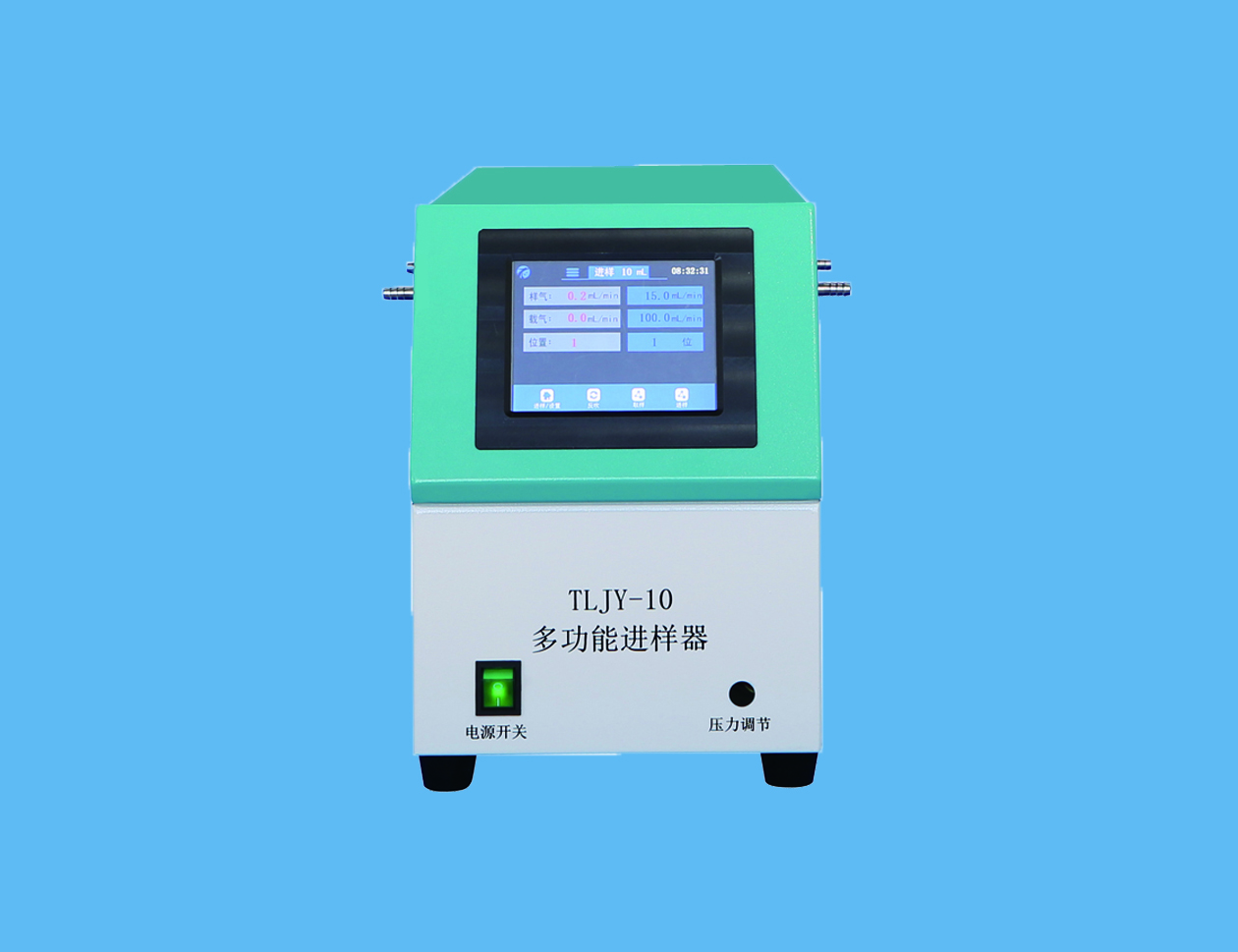

TLJY -10 multifunctional sampler

TLJY -10 multifunctional sampler (optional flash evaporation function)

Product Usage: The multifunctional sampler is a six position fully automatic multifunctional gas sampler that can be used in conjunction with a fluorescence sulfur analyzer to achieve six position gas sampling

Fully automatic sample injection can also be used in conjunction with a gas chromatograph to complete automatic sampling and injection of six gas samples. The working process of the instrument can be achieved;

Gas bag injection, steel cylinder injection, automatic switching to sampling position, pipeline backflushing, sample sampling, sample injection, and other processes.

Functional features:

1. Ethylene. Assisted injection of isomers of propylene and butene;

2. Analysis pre-treatment of trace oxygen and trace sulfur in various polymer grade olefins;

3. Analysis pretreatment of trace amounts of carbon monoxide and carbon dioxide in various polymer grade olefins;

4. Pre processing of liquid hydrocarbon composition analysis, etc

Technical parameters:

Display: LCD (640 X 480 touch screen liquid);

Number of injection routes: 6;,

Injection method: Bag injection. Steel cylinder flash injection

Quantitative tube: 2mL or 10mL can be set to switch;

Carrier gas flow rate: 1-200mL/min;
