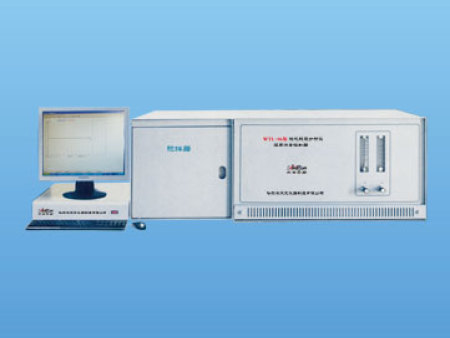

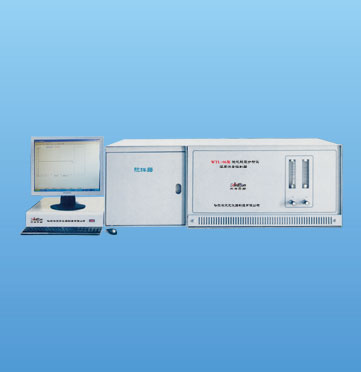

WTL-06 fully automatic microcoulometric sulfur and chlorine analyzer

Product Usage: Widely used in the petrochemical industry to detect sulfur and chlorine content in liquid, solid, or gas samples.

Applicable standards: comply with SH/T0253 SH/T0254 SH/T0222 ASTMD3120 ASTMD3246, etc.

Functional characteristics: The WTL-06 microcoulometry titrator (microcomputer sulfur and chlorine analyzer) applies microcoulometry analysis technology, uses oxidation method to oxidize the sample into titratable ions through a cracking furnace, titrates in a titration cell, and calculates the sulfur or chlorine content in the sample based on the electricity consumption during the electrolytic titration process and Faraday's law. The instrument has the characteristics of stable and reliable performance, convenient operation, high analysis accuracy, and good repeatability.

Technical parameters:

Measurement range: S: 0.2MG/L~5000 MG/L

N: 0.2MG/L-5000MG/L

CL: 0.5MG/L~5000 MG/L

Current generated: ± 2MA

Electrolytic voltage: ± 30V

Lower limit of detection: S: 0.2MG/L

N: 0.2MG/L

CL: 0.5MG/L

WTL-06 fully automatic microcoulometric sulfur and chlorine analyzer

Repeatability error: X ＜ 0.5MG/L, ＜ 50%

0.5MG/L ≤ X ＜ 1.0MG/L, ± 0.1MG/L

1.0MG/L ≤ X ≤ 10MG/L, ＜ 10%

X ＞ 10MG/L, ＜ 5%

Temperature control range: room temperature~1000 ℃

Environmental conditions for instrument use: ambient temperature 15-30 ℃, humidity ≤ 85%

Power supply voltage: AC220V, 50HZ

External dimensions: 1050 x 400 x 550mm (length x width x height)
