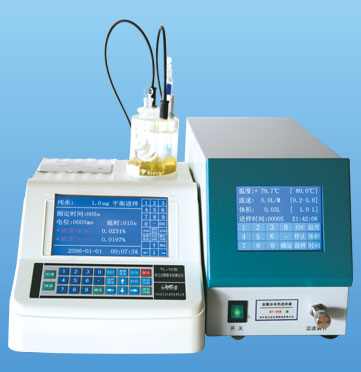

TLA-4 olefin specific trace moisture analyzer

Product Usage: This product is composed of a precision moisture analyzer and a metal bath flash sampler, which can measure the moisture content in various olefins and gases.

Applicable standards: Developed and produced in accordance with GB/T3727 and GB/T6023

Product features:

◇ Composition of this system: TL series Coulomb trace moisture analyzer, BY-05M metal bath flash vaporization sampler and communication control software.

◇ Convert hydrocarbon and gas-liquid mixed, gaseous samples into homogeneous gaseous hydrocarbon substances with equal composition, constant temperature, constant pressure, and controllable flow rate, and enter the trace moisture meter for measurement. The measurement lower limit reaches PPM level moisture content.

Technical parameters:

Range of mass flow meter: 0-5L (adjustable) 5L, 10L, 50L, 100L (optional)

Quality flow meter control flow rate accuracy: 0.1L/mIN, adjustable with range size

Temperature control can be set freely between room temperature and 300 ℃, adjustable

Temperature control accuracy: ± 0.1 ℃

Can measure low water content in olefins up to 0.5 PPM.

Environmental conditions for instrument use: ambient temperature 15-30 ℃, humidity ≤ 85%

Power supply voltage: AC220V, 50HZ

External dimensions: 500 x 390 x 350MM (length x width x height)
