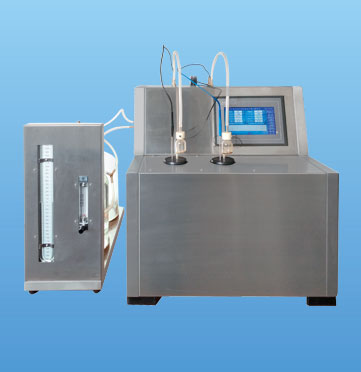

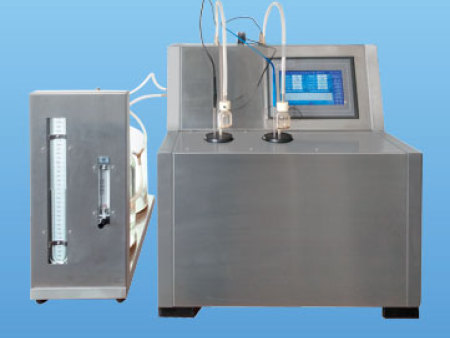

TLLV-20 Automatic Cold Filter Point Tester

Product Usage: Used for cold filtration point analysis of dark petroleum products, crude oil, and other transparent or semi transparent petroleum products.

Applicable standard: SH/T 0248 "Determination of Cold Filtration Point of Distillate Fuel"

Functional features:

Automation level: Industrial grade ARM32 bit SMT core processor, automatically completing the testing process. The data can be exported through a USB drive and processed by a computer to achieve environmentally friendly office and paperless detection.

Control system: Adopting industrial grade PLC programmable logic controller, treated with three proof paint, ensuring worry free instrument safety. A 7-inch tablet touchscreen display allows you to complete experiments based on screen prompts without the need for training.

Operating system: WINDOWSCE embedded operating system, with a fully Chinese operating interface, allowing for arbitrary page switching, simple and convenient operation, automatic printing of results, and a large capacity storage function that can store tens of thousands of data and curves.

Safety performance: Automatic start of suction filter timer, automatic diagnosis, automatic judgment of results, over temperature alarm and automatic cut-off of heater power supply, and alarm prompt function upon completion of the test.

Data input/output: LIMS interface, RS485 connection standard, can connect to USB2.0 interface. Supports online monitoring and downloading, making it more convenient to use.

Technical parameters:

Detection accuracy: ± 0.1 ℃

Detection range: room temperature~-75 ℃

Sensor: PTL00 (German JUMO temperature sensor)

Number of test samples: 2 channels

Refrigeration method: compressor refrigeration (DANFOS)
