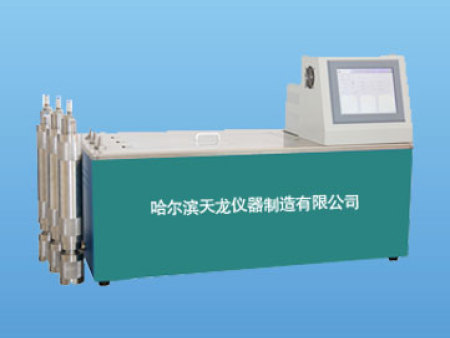

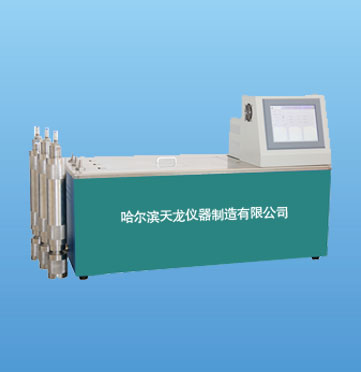

TLQY-10型 全自动饱和蒸汽压测定仪

Applicable standards: Designed and manufactured according to GB/T 8017-2012 and ASTM D323 standards, suitable for measuring the vapor pressure of gasoline, volatile crude oil, and other volatile petroleum products.

Functional features:

Large screen LCD display, embedded system control, automatic output of results, and real-time display of pressure curve.

There are three test projectiles in the bath, which can be used for parallel testing of samples on the instrument.

The test projectile automatically rotates and oscillates, repeatedly cycles, and is equipped with a pressure correction device.

The SMC quick connector and rotary joint imported from Japan have good sealing performance.

Technical parameters:

1. Water bath temperature: Room temperature~80 ℃± 0.1 ℃ (temperature control point 37.8 ± 0.1 ℃)

2. Display accuracy: LCD display, 0.1KPA. 3. Pressure measurement range: 0-200KPA.

4. Oscillation mode: Horizontal automatic forward and reverse rotation.

5. Body volume: Air chamber: 2 x Φ 51 × 254 ± 3MM

Gasoline chamber: 2x Φ 51 × 63.5 ± 3MM

V empty: V vapor=3.95-4.05
