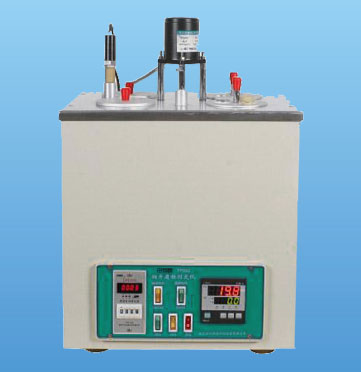

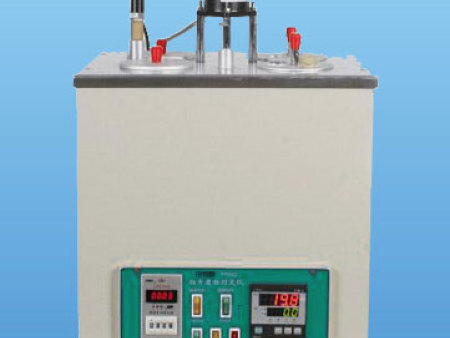

TLFS-10 Petroleum Product Copper Strip Corrosion Tester

Applicable standard: GB/T5096 "Copper corrosion test method for petroleum products"

Functional features:

Control method: Temperature control system, digital display for accurate temperature control. It also has a timing function, which is used for timing control and automatic timing during sample testing, and will also give an alarm prompt.

This instrument has 4 sample test wells, each of which can accommodate one test cartridge or 3 test tube samples for simultaneous testing, resulting in high testing efficiency.

Fixture: Equipped with a flexible grinding fixture for easy grinding of test pieces.

Equipped with standard color palettes imported from the United States, meeting the requirements of experimental comparison.

Technical parameters

1. Temperature control range: room temperature~200 ℃

2. Temperature control accuracy: ± 0.1 ℃

3. Heating power: 2.0KW

4. Working power supply: AC220V ± 10% 50HZ

5. Number of experimental holes: 4 holes

6. Boundary dimensions: 260 x 400 x 640MM (length x width x height)
