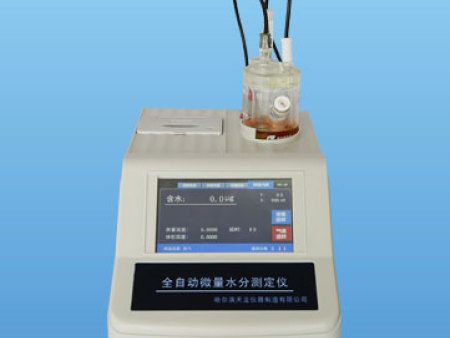

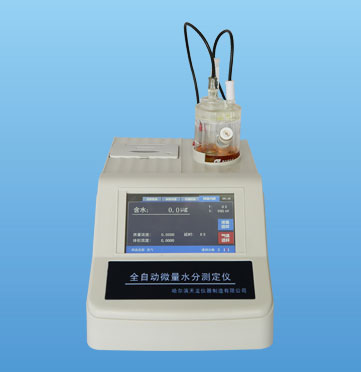

TL-10/20 fully automatic trace moisture analyzer

Product Usage: The product is mainly used in industries such as petrochemicals, electricity, pharmaceuticals, pesticides, environmental protection, and food.

Applicable standards: SH/T 0246, GB/T 3727, GB/T 7600, etc.

Functional features:

◇ Operation mode: The integrated design of touch screen buttons allows for both touch screen and button operation.

◇ Anti electrolysis function: enter equilibrium state faster after startup.

◇ Self inspection: The instrument has the function of self diagnosis and measurement, as well as the function of electrolytic electrode faults

◇ Drainage and replenishment: automatically replenish Karl Fischer reagent and automatically discharge the waste liquid in the electrolytic cell (optional).

◇ Status: Full process prompts for different states of the instrument.

◇ Add dynamic blank button function.

◇ Add automatic calibration function: This function solves the problems caused by differences in different reagents and decreased reagent sensitivity

Error.

◇ The instrument can be connected to LIMS to transmit experimental data and control functions (optional).

Technical parameters:

Electrolytic control: Automatic electrolytic current control (larger than 400MA);

Measurement range: 3UGH 2 O~400MGH 2 O;

Electrolysis speed: 2.0 milligrams of water per minute;

Sensitivity threshold: 0.1 micrograms of water;

Accuracy: 3UG-100UGHO error ± 1UG; Above 100UGH2O ± 0.5%.

Printing: Wide line micro printer;

Storage: 100 sets of experimental data storage function

Environmental conditions for instrument use: ambient temperature 15-30 ℃, humidity ≤ 85%

Power supply voltage: AC220V, 50HZ

External dimensions: 240 x 390 x 350MM/260 x 350 x 350MM (length x width x height)
