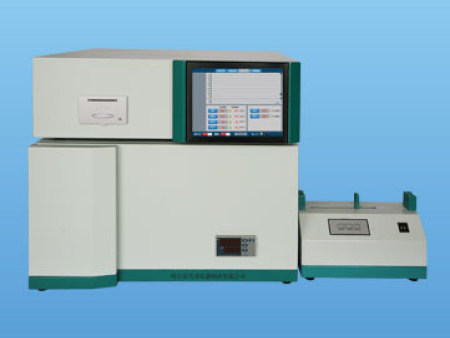

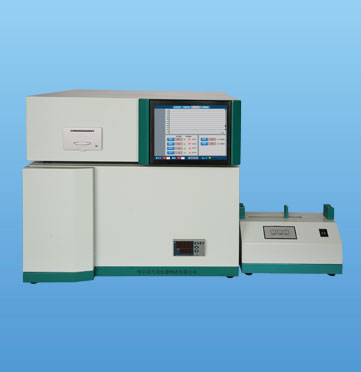

TLSN-30 sulfur and nitrogen analyzer

Product Usage: Suitable for determining the content of total sulfur and total nitrogen in samples such as crude oil, hydrocarbons, engine fuels, petroleum gas, plastics, petrochemical products, and food.

Applicable standards: Developed and produced according to standards such as ASTM D4629, SH/T 0689, ASTM D5453, SH/T 0657, etc

Functional features: Automatic adjustment of carrier gas and cracking gas flow rate injection method, one click operation of the instrument for automatic injection.

Technical parameters:

Measurement range: 0.2MG/L-10000MG/L - percentage content sensitivity: 0.01MG/L

Temperature control range: room temperature -1200 ℃ Temperature control accuracy: ± 1 ℃

Repeatability error: 0.2MG/L ≤ X ≤ 1.0MG/L ≤ ± 0.1MG/L

1.0MG/L ≤ X ≤ 10MG/L CV ≤ ± 10%

X ＞ 10MG/L CV ≤ ± 5%

X (sample sulfur and nitrogen content) CV (relative error)

Environmental conditions for instrument use: ambient temperature 15-30 ℃, humidity ≤ 85%

Power supply voltage: AC220V, 50HZ

External dimensions: 930 x 540 x 590MM (length x width x height)
